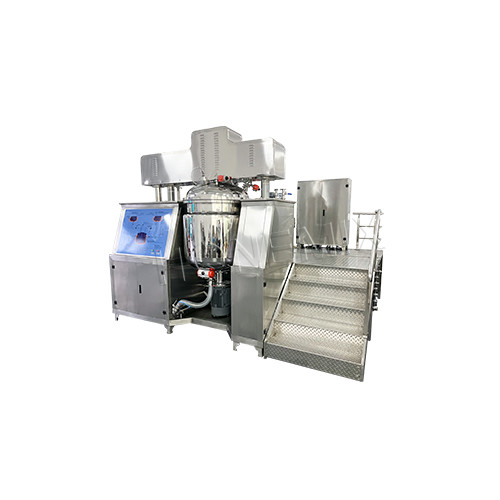

Dual Lifting Cosmetic Paste Vacuum Emulsifying Mixer With PLC System
Automatic Vacuum Emulsifying Mixer
Automatic Vacuum Emulsifying Homogenizer adopts PLC control system, all function parameters can be adjusted through touch screen, Automatic pneumatic valves control for the pipes and fittings, the water and oil tanks can be automatic suction to the main pot, automatic discharge finished produces from main tank, Intelligent receipt system can be save various parameters and functions during production of different products, and can be directly called for the next production. Easy operation and efficient production.
Features
-
Working Capacity: 100-500L
-
Top Frame Mixing with Speed adjustable
-
Bottom Homogenizer with Speed adjustable
-
Jacket cooling and heating
-
Temperature adjustable
-
Standard type match Oil and water tank
Other Option
-
Fixed Type
-
Working Capacity can be customized from 5L ~ 5000L
-
Mixing Type: Homogenizer, Anchor, Spiral, Paddle
-
ABB/Siemens Motor
-
Jacket Steam/Electric Heating
-
PLC/Button Operation Controller
-
Flowmeter
-
Load Cell
-
Voltage Customized
Specification
| Main Tank Capacity: |
100-500L |
Water/Oil Tanks Capacity: |
60-350L |
| Agitator motor: |
2.2-7.5KW |
Stir Speed: |
0-65rpm(Delta) |
| Homogenizer Motor: |
4-15KW |
Homogenizing Speed: |
0-3000rpm(Delta) |
| Voltage: |
220V/380V(Customized) |
lifting system: |
Hydraulic lifting |
| discharge way: |
Manual Tilting discharge |
Electric control system: |
button operation( PLC Controller is available) |
Application
- Cosmetics and Personal Care: creams, lotions, serums, and other beauty products.
- Pharmaceuticals: ointments, gels, creams, and suspensions. T
- Food and Beverage: sauces, dressings, mayonnaise, and various food emulsions.
- Chemical Industry: shampoo, liquid soap, liquid detergent, mouth washing, household cleaning products
- Biotechnology and Pharmaceuticals: Employed in the development of biopharmaceuticals, vaccines.
FAQ
Q: What is Vacuum emulsifying Mixer?
A: Vacuum emulsifying Mixer is a special equipment used for producing high-quality ointments, creams, lotions and other emulsion products in cosmetic, pharmaceutical and food industries.
Q: What are the features of Vacuum emulsifying Mixer?
A: Vacuum emulsifying Mixer features high speed dispersing, high shearing, homogenizing and emulsifying, wide applications, low energy consumption, easy and safe operation, etc.
Q: What materials can be processed with Vacuum emulsifying Mixer?
A: Vacuum emulsifying Mixer can process different materials, such as cosmetic cream, food paste, ointment, liquid detergent and shampoo, etc.
Q: How many types of Vacuum emulsifying Mixer are there?
A: Vacuum emulsifying Mixer is available in two types, including VH type and V type.
Q: What is the capacity of Vacuum emulsifying Mixer?
A: The capacity of Vacuum emulsifying Mixer ranges from 10 liters to 5000 liters.
